Case Sharing-Floating bodies

Today,we are sharing a rotational molding floating body, which has a very large market demand! We believe that our sharing can bring you a new experience.

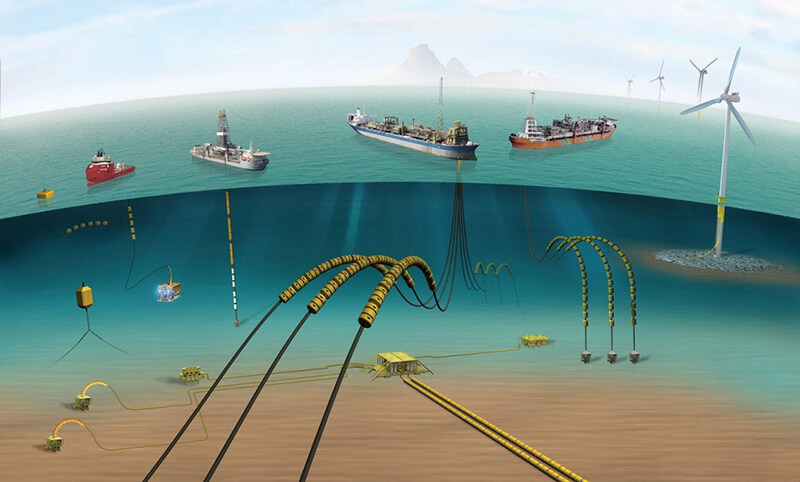

 1)Protecting Undersea Energy Pipeline:

The pipelines transport high-temperature hydrocarbons along the seafloor or back to the surface. In order to maintain flow rates, heat loss at key junctions such as submarine connections, end joints and multi-pipe connections must be minimized, as exposed metal surfaces rapidly cause heat loss and rust.

Because of the special process of rotational molding, the floating body is particularly resistant to pressure and impact, while the foaming floating body can play a thermal insulation effect!

Customers have proven that the system reduces its movement in the subsea environment by up to 75%, and accordingly doubles the cable life based on subsea topology and ocean data; Even in the most extreme offshore environments, the system reduces its movement in subsea environment by 50 per cent, more than doubling the lifetime performance of pipe or cable laying.

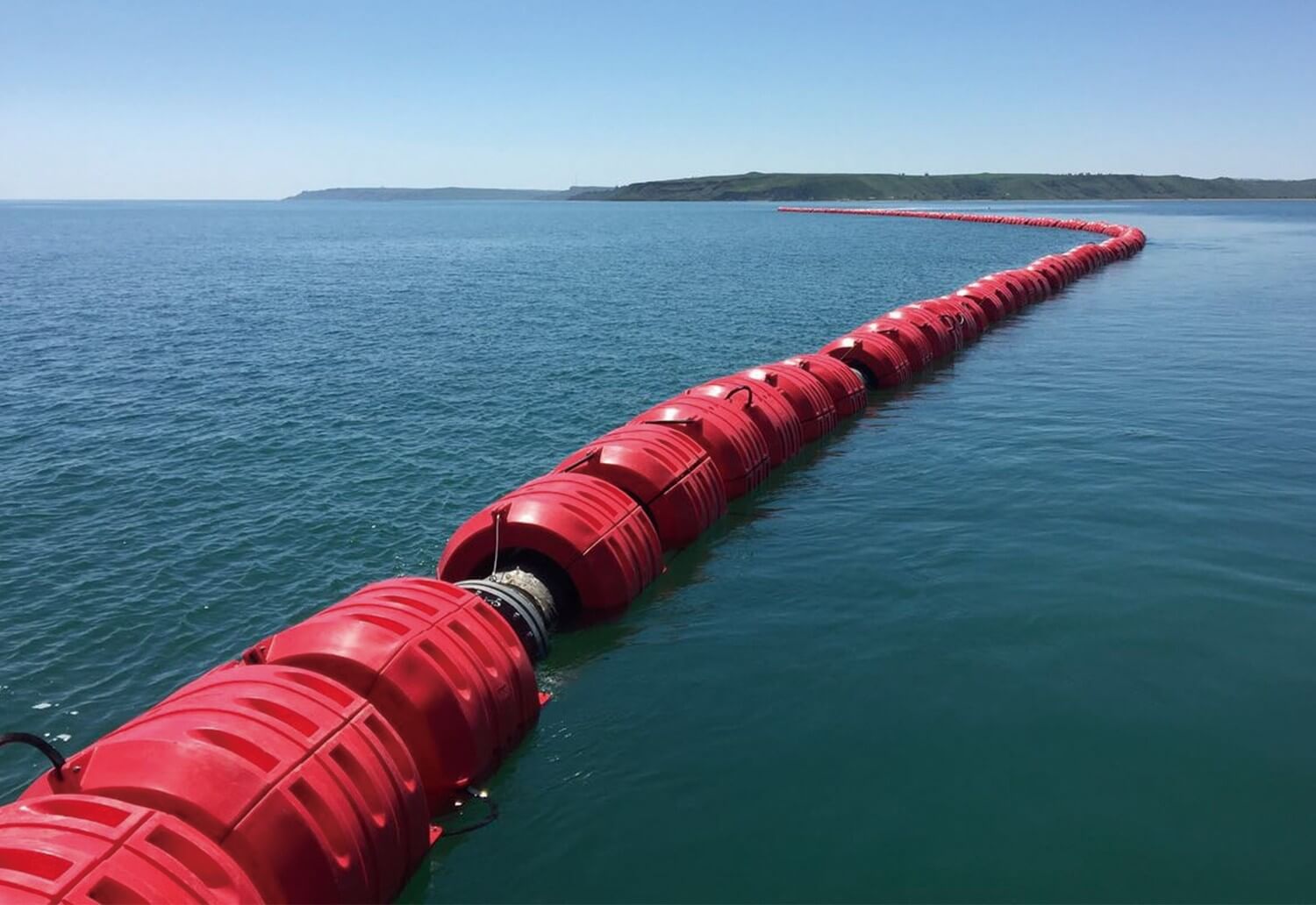

2)Laying pipes on water:

The floating body covering a pipe allows the pipe to float on the water and can also be used to reduce pipe bending.

With a variety of bright colors, floating bodies can also act as warnings on the sea or lake to prevent impact on pipes.

Construction is very convenient, manufacturing and maintenance costs are low.


3)Offshore New Energy Applications:

The rotational molding floating body can be used for a long time in fresh or salt water conditions, and ultraviolet additives are used to prevent fading. Product wall thickness can be controlled to increase the strength and support level required for long term use.

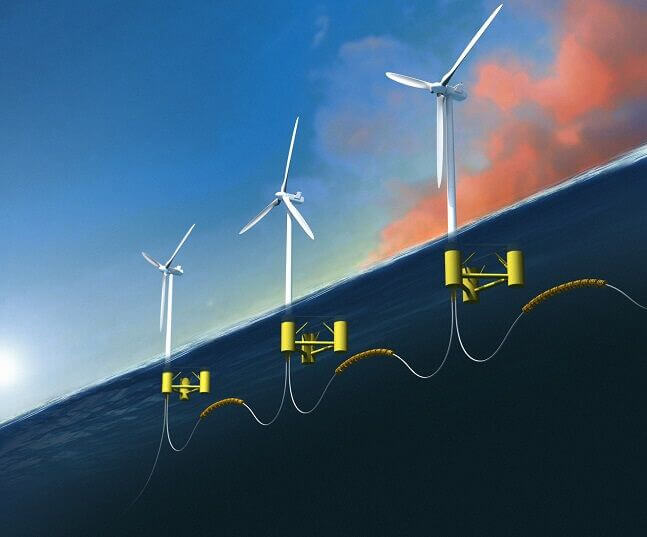

A . Offshore wind energy

Wind energy is converted into electricity by an unimpeded amount of wind at sea. The main role of the floating body is to stabilize the seabed and provide support to the pipeline!

The main role of the floating body is to stabilize the seabed and provide support to the pipeline!

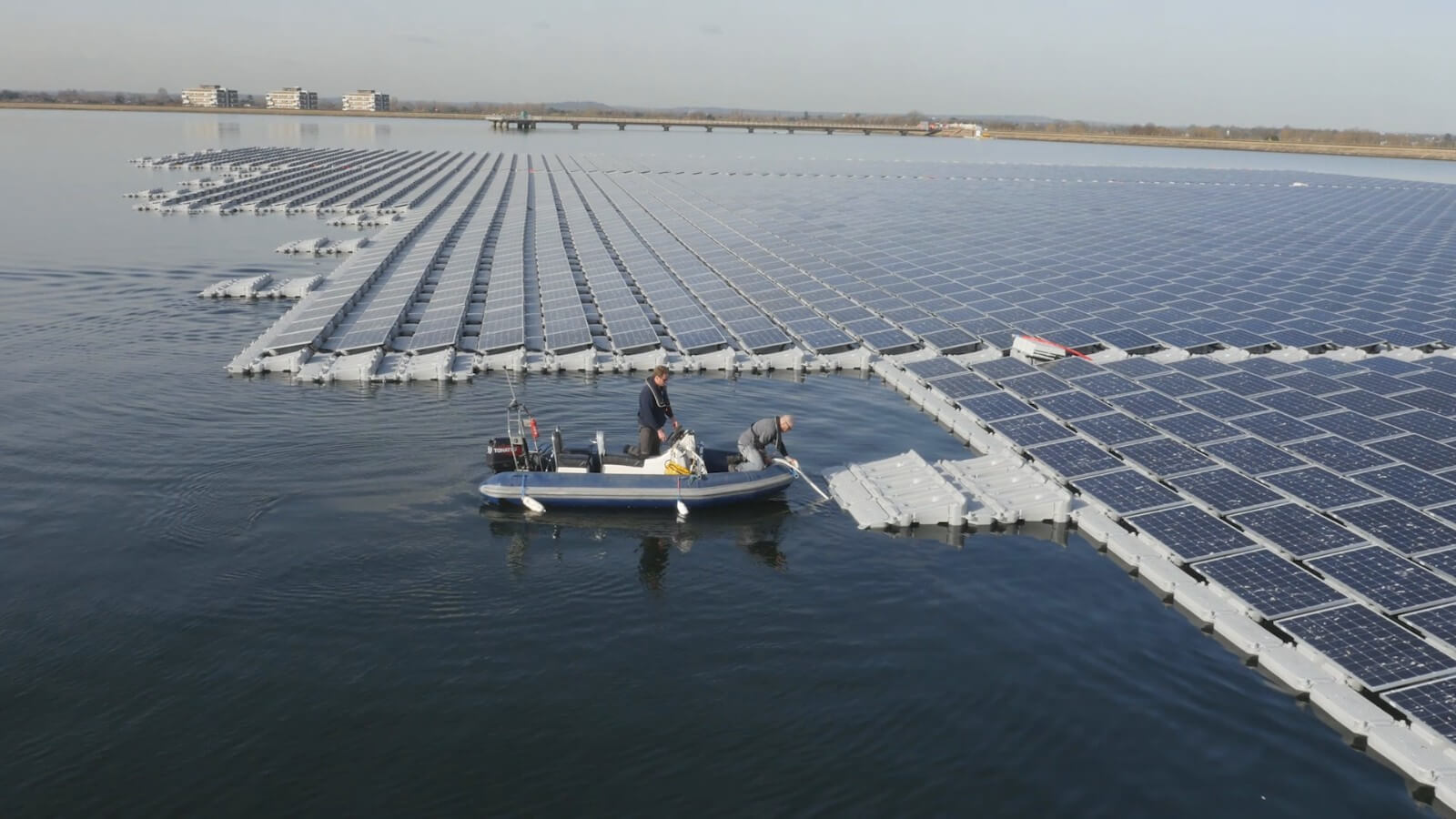

B . Solar energy

There is no shelter on the surface of the sea or lake, creating a high-quality environment for solar energy absorption

Floating bodies are mainly used to support, connect and stabilize solar panels!

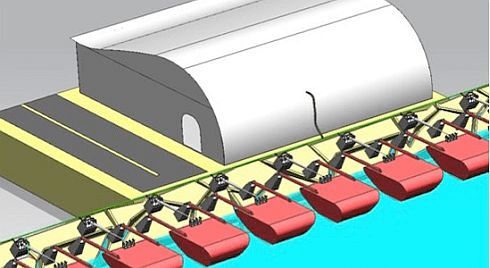

C . Wave energy

Conversion of potential energy from tides and waves into electricity

Floating body is mainly used in the carrier of potential energy transforming kinetic energy, which needs very strong impact resistance.

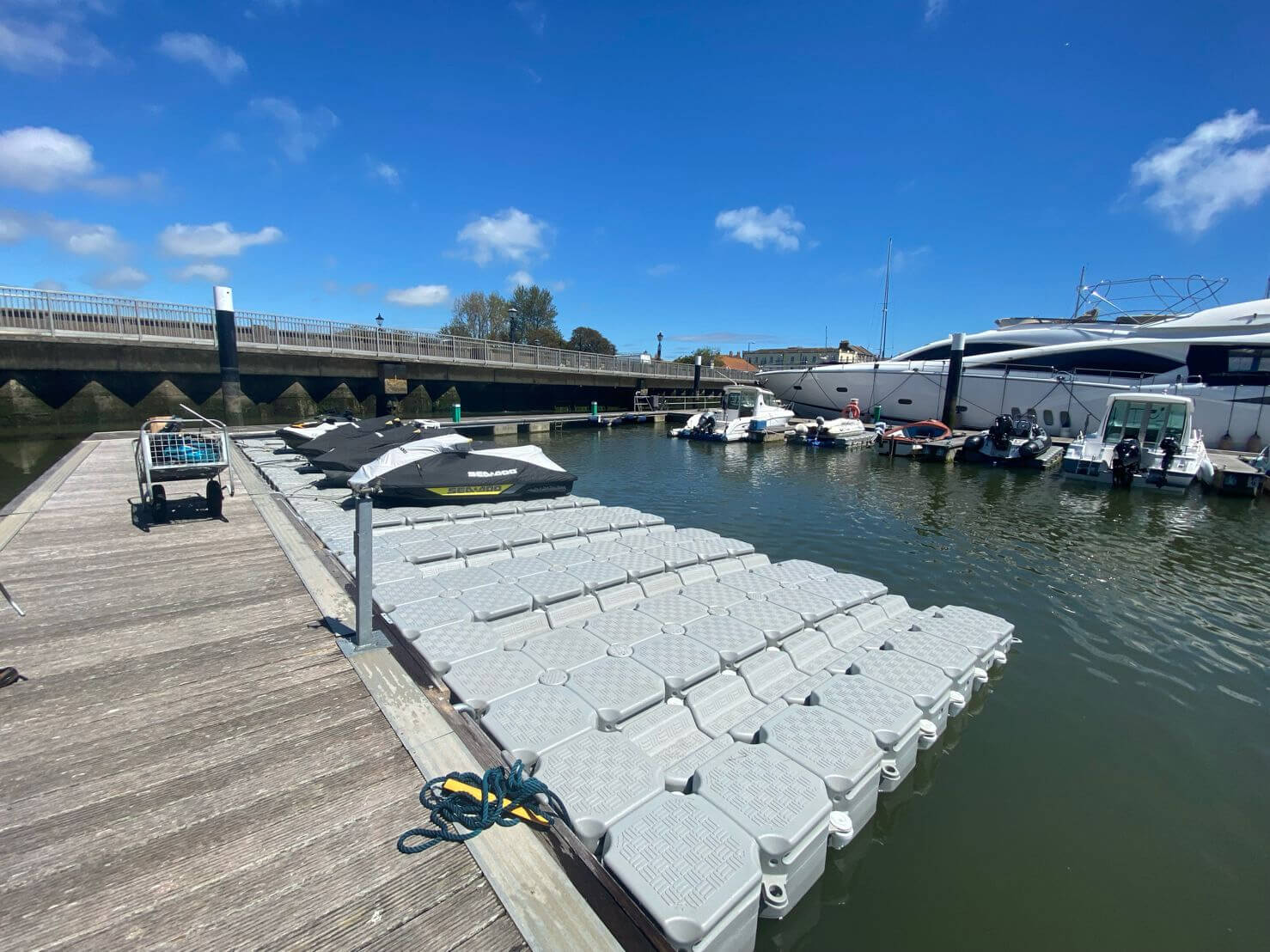

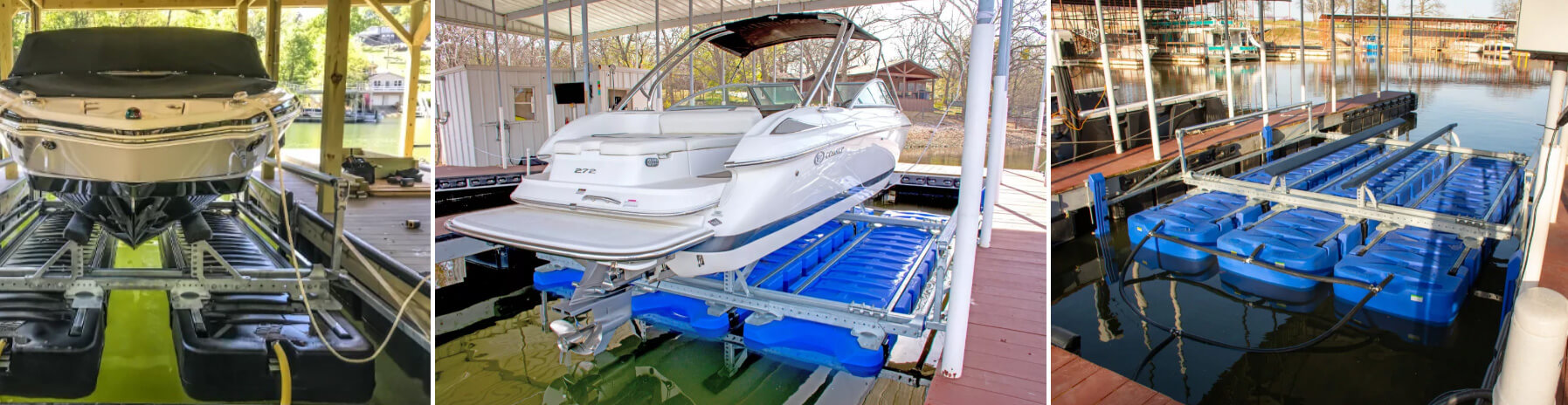

 4)Floating bodies on docks:

The floating body can be assembled to the desired size and shape. The docking module can be configured end-to-end or side-to-side for many different applications.

otational molding floating body can be used for a long time in fresh or salt water conditions, and ultraviolet additives are used to prevent fading. Product wall thickness can be controlled to increase the strength and support level required for long term use.

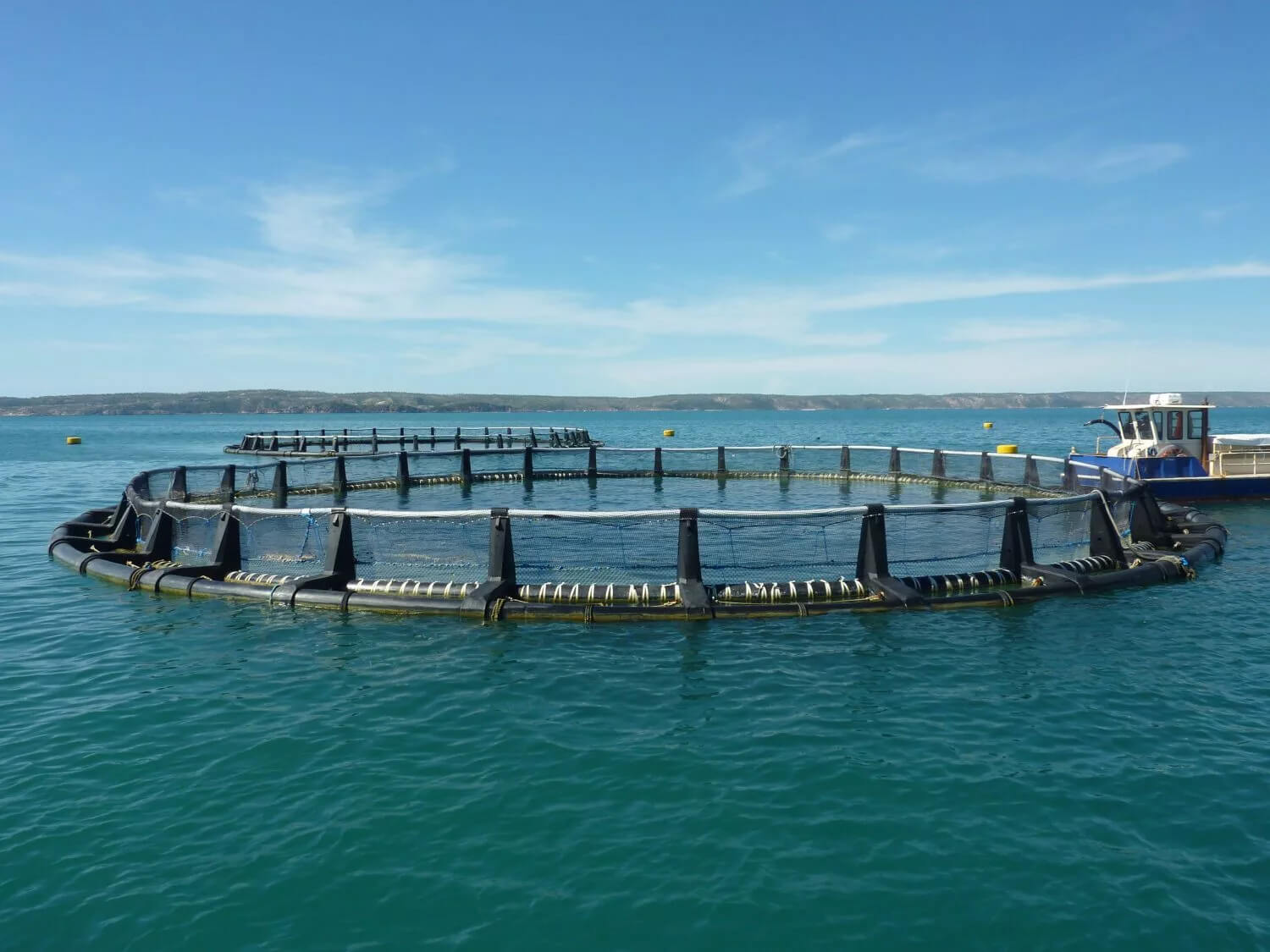

5)Aquaculture:

Floating bodies are often used in aquaculture.This system, as shown below, is very flexible and can be relocated to fish suitable waters and keep fish active!

The key to this system is the rotational molded floating bodies, which need to have enough buoyancy and  support to cope with different aquatic environments.

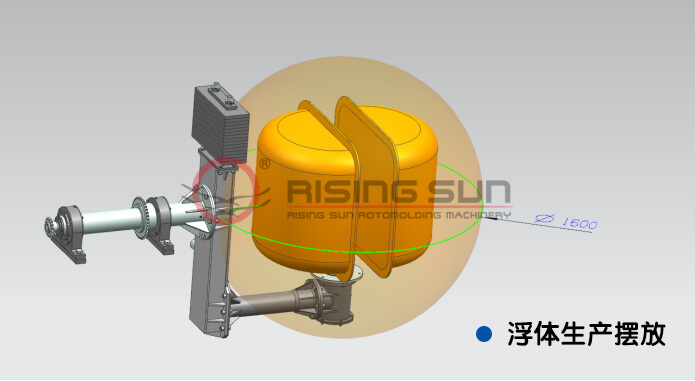

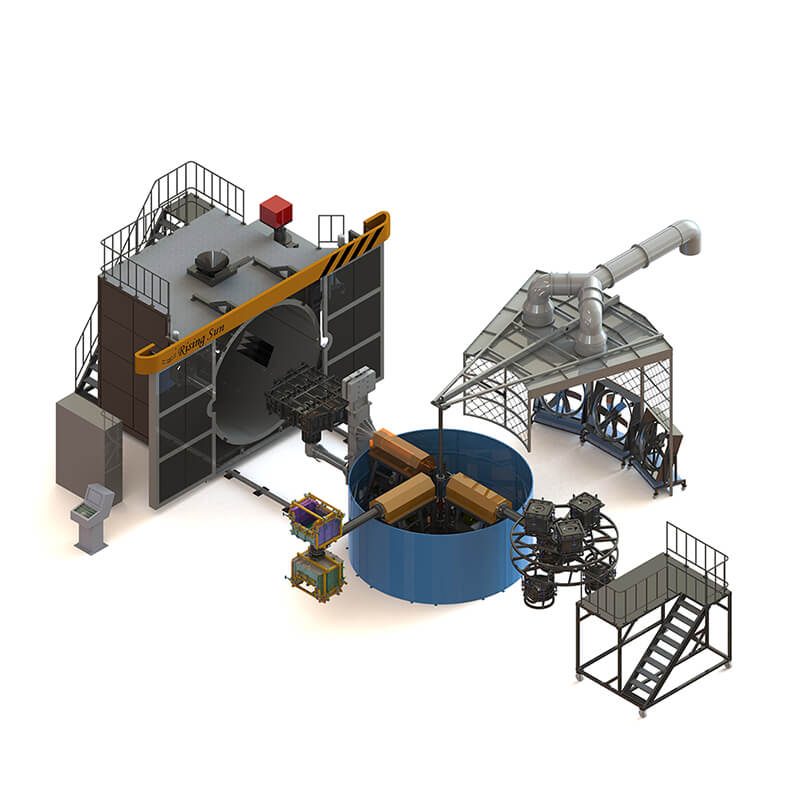

Machines selection:

Because of the high yield demands of these floating bodies, our turret-type rotational molding machines are often recommended for their production.
